Power On
To turn on the air conditioner, press the Operation Stop button. This will activate the air conditioner.
Mode Selection
Press the Mode button to select your preferred operation mode.
Each time you press the button, the display will show the selected mode.
(Available modes: Cooling, Dehumidifying, Fan)
Temperature Setting
Use the Temperature buttons to adjust the room temperature.
Press ▲ to increase and ▼ to decrease.
The set temperature will appear on the display.

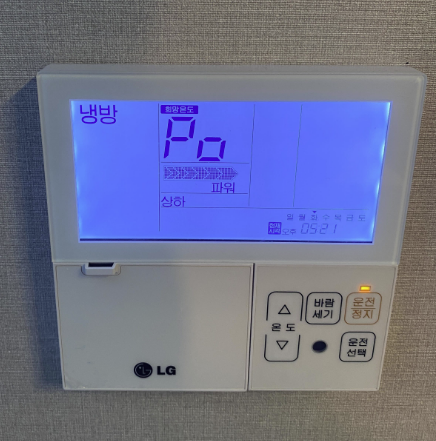

Fan Speed Adjustment
Press the Fan Speed button to control airflow intensity.
Each press will cycle through: Low → Medium-Low → Medium → High → Power (Po)
The current fan level will appear on the display.
Power Mode (P Mode)
Use P Mode (Power Mode) for rapid cooling.
The air conditioner will operate at maximum capacity.
'Pa' will appear on the display when P Mode is activated.
Power Off
To stop the air conditioner, press the Operation Stop button again.
All functions will stop and the display will turn off.
Timer Setting
Use the Timer button to schedule automatic start or stop.
Set your desired time for the air conditioner to turn on/off.
Screen Lock
To lock the screen, press and hold the Lock button.
To unlock, press and hold the Lock button again.

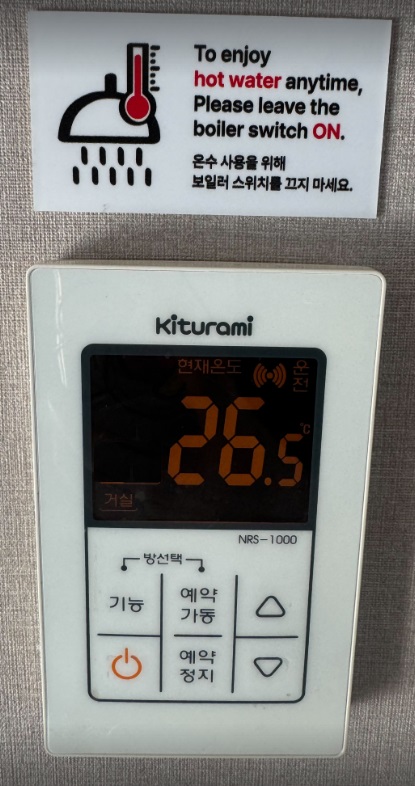

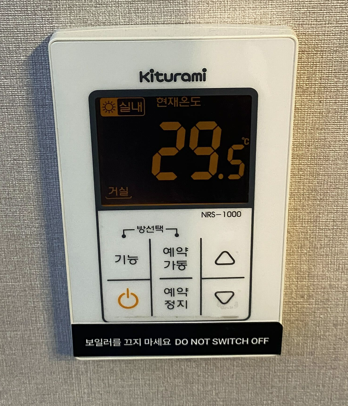

Power ON / OFF
ON: Press the Power button to activate the boiler.
OFF: Press it again to turn off. All operations will stop and the display will turn off.
Heating Mode Setting
You can control the entire unit (living room + bedroom) with a single boiler pad.
Use the boiler pad in the living room: press the Power button, then select Indoor Mode with the Function button.
Temperature Adjustment
Press the Function button, then use ▲/▼ to set the desired temperature.
The set temperature will appear on the display and be maintained.
Heating Reservation (Timer ON)
To auto-start the boiler at a specific time, use the Reservation ON button.
After setting the time, the boiler will start automatically at that time.
Heating Stop Reservation (Timer OFF)
To auto-stop the boiler, use the Reservation OFF button and set the stop time.
Stop Heating
To stop heating, press the Function(기능) button to disable heating mode.
Alternatively, use the reservation OFF function to set an automatic stop time.
Additional Features
The Function(기능) button also allows Eco Mode, Hot Water Mode, etc.
You may activate them to optimize efficiency as needed.
Set the mode to either Outing or Bath to use hot water.
If set to Indoor, the boiler will run underfloor heating as well.
※ If the boiler is turned off, hot water is not available. Please make sure to turn it on and set the correct mode before use.

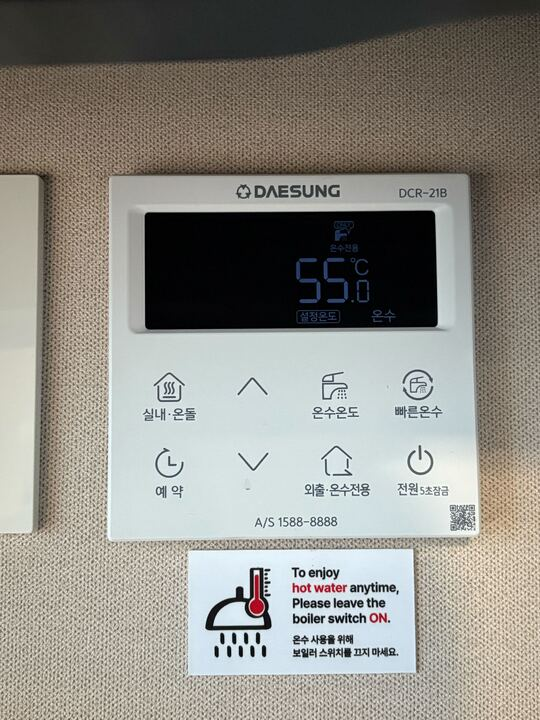

Control Panel (Touchpad)

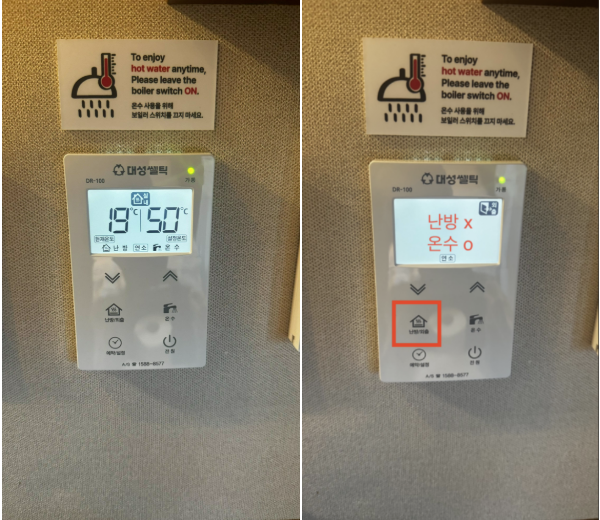

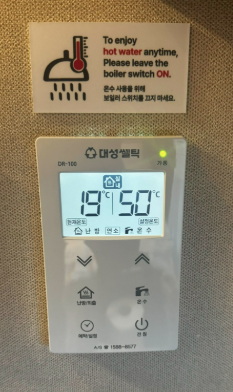

Left Image: Heating + Hot Water Active → Indoor Mode

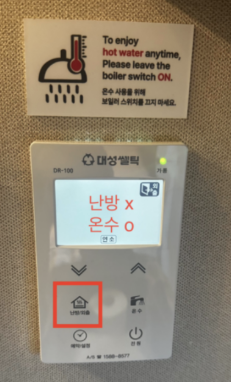

Right Image: Hot Water Only Active → Outing Mode

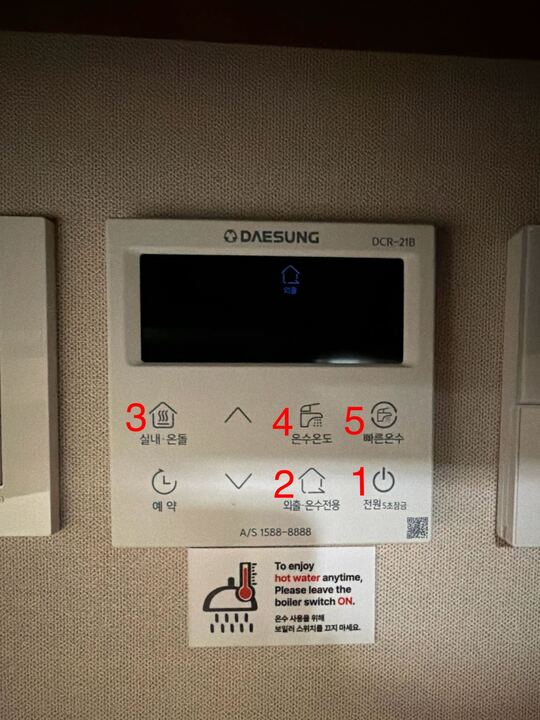

Power ON / OFF
ON: Tap the Power button to activate.
OFF: Tap again to deactivate the panel and stop all operations.

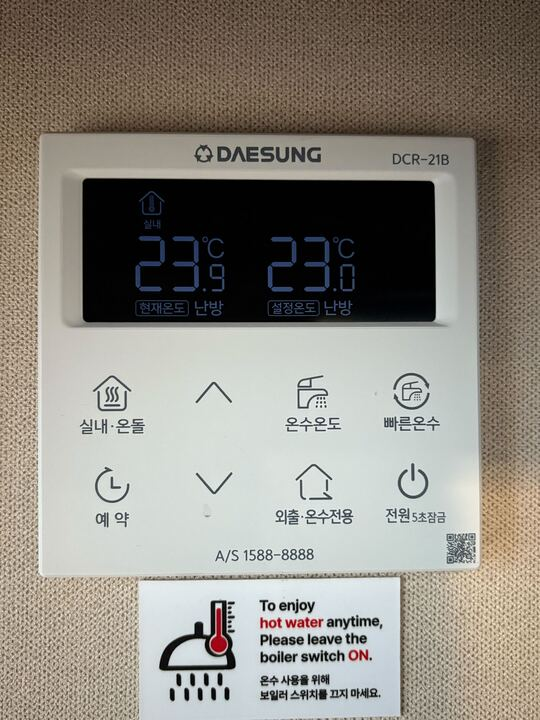

Heating Mode (Ondol / Indoor)
Indoor Mode: Heating + Hot Water
Tap Heating/Outing button to select the mode.
Use ▲/▼ to adjust the desired temperature.
If powered off, press and hold Reservation/Setting + Hot Water for 5 seconds to switch between Ondol/Indoor mode.
To switch to Outing, tap the Heating/Outing button once.
Hot Water Mode (Outing / Hot Water)
Outing Mode = Hot Water only (no heating).
This is the default recommended state.
To switch to Heating, tap the Heating/Outing button twice.
Timer Setting
Press the Reservation/Setting button and use ▲/▼ to set the time.
Time range: 1–12 hours
Operating duration: 5–60 minutes(e.g., If set to 20 minutes ON every 2 hours, the boiler will operate 20 minutes and rest for 2 hours repeatedly.)
Q1. The air conditioner is on but there's no cold air.
A1. Check if Cooling Mode is selected in the “Mode” setting. (Only Cooling is supported.)
Q2. Heating is on, but the room doesn't feel warm.
A2. Ensure the boiler pad is set to Indoor(실내) Mode.
Q3. No hot water is coming out.
A3. Ensure the boiler is powered ON and set to Outing(외출) or Bath(목욕) mode.
If an error code appears, please contact Mobile Front for assistance.
