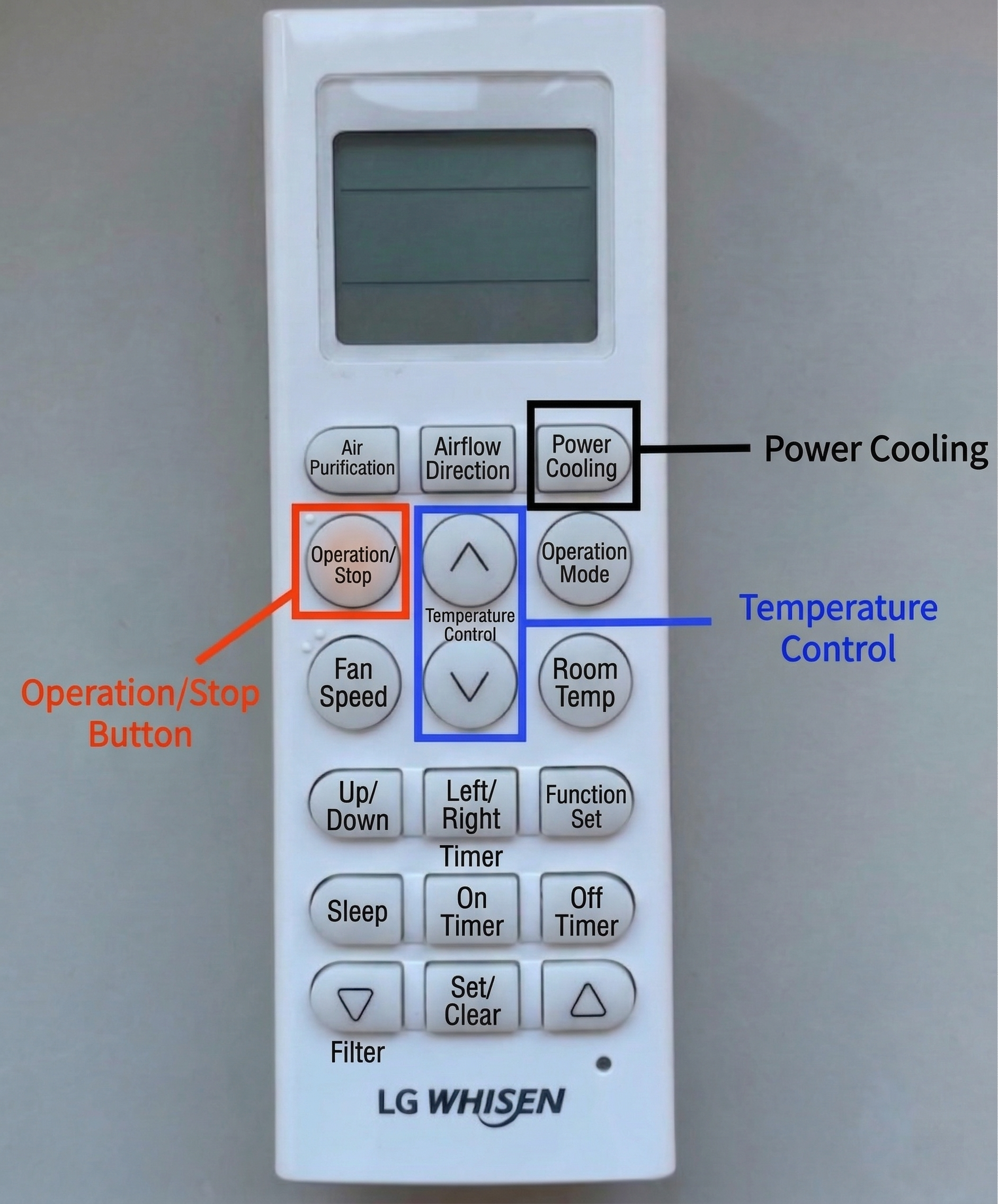

You can control each Room and living room separately using the air conditioner remote.
The remote offers cooling, auto, dehumidifying, and fan functions. Adjust the mode using the mode button.
There is no heating mode.
The air purification button adds an extra air purification feature on top of the selected mode.
There are three types of boilers. Please adjust according to the boiler installed in your Room.
Use the thermostats on the walls of both the living area and Room to set your desired temperature and use heating.
The Room will not get warm immediately after turning on the heating. Heating will take effect after a short period.
1. Acta238 UTH-170
How to use:
Power: Press the leftmost button (power/settings icon) to turn on or off.
Temperature: Use the two middle buttons (+/- icons) to set the desired temperature.
Save Settings: Press the rightmost button (settings icon) to complete the setup.
Note: A red light on the display means the boiler is operating.
2. Kyungdong Navien NRS-15S
How to use:
Power: Use the bottom right “Power [전원]” button to turn on or off.
Temperature: Press the central “+” and “–” buttons (top and bottom center) to adjust the temperature.
Heating mode: Press the top left “Heating [난방]” button to start heating.
Away mode: Press the top right “Away [외출]” button for away mode (minimal heating).
Settings: Use the bottom left “Settings [설정]” button for time, hot water, reservation, and other features.
3. SV7 New Wave
How to use:
Power: Briefly press the center switch (power/settings icon) to turn on or off.
Temperature: Use the up/down buttons (up arrow increases, down arrow decreases temperature) to set your desired temperature.
Display: Current temperature is shown in “Level” (Celsius).
Caution: Be sure to read the “Usage Precautions” sticker before use.
Hot water is always available without any additional operation.
